Expert Tips for Achieving High Precision in CNC Prototyping

SHD PROTOTYPE
Dec 08, 2024By SHD PROTOTYPE

Understanding CNC Prototyping

CNC prototyping is a crucial aspect of modern manufacturing, allowing for the rapid creation of precise and intricate parts from digital designs. This process utilizes computer numerical control (CNC) machines, following programmed instructions to shape materials accurately. Achieving high precision in CNC prototyping is essential for producing reliable and high-quality prototypes that meet exact specifications.

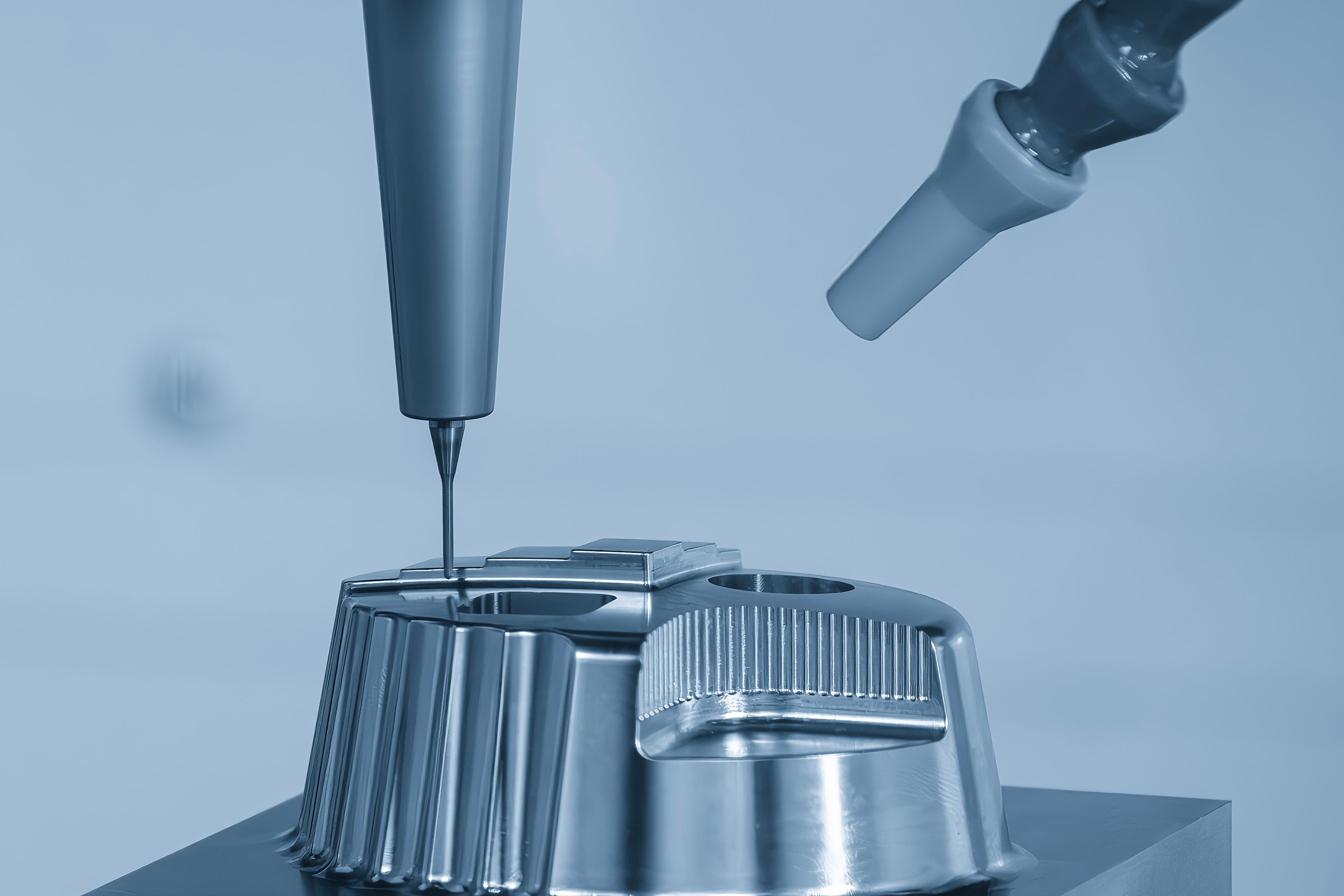

The CNC milling machine cutting  mold part by solid ball end mill tool.

Choosing the Right Materials

The material selected for CNC prototyping plays a vital role in determining the precision and effectiveness of the prototype. Various materials exhibit distinct characteristics, including strength, malleability, and thermal conductivity. Aluminum and steel are favored for their robustness, whereas plastics provide a more economical option for applications with less stringent requirements. Careful material selection is essential to ensure it meets the performance criteria of the intended final product.

Optimizing Design for CNC Machining

Design optimization is another critical step in achieving high precision in CNC prototyping. Engineers should ensure that designs are compatible with CNC capabilities by avoiding overly complex geometries that may lead to inaccuracies during machining. Incorporating features such as fillets instead of sharp corners can help maintain precision and reduce tool wear.

cad design

Tool Selection and Maintenance

The selection and upkeep of cutting tools directly influence the precision of CNC prototypes. Using high-quality, sharp tools ensures clean cuts and accurate dimensions. Regular maintenance and timely replacement of worn tools are essential practices to maintain consistent quality.

  • Choose tools appropriate for the material being machined.
  • Inspect tools regularly for signs of wear or damage.
  • Replace tools as needed to avoid compromising precision.

Programming Accuracy

Accurate programming is vital in CNC prototyping as it dictates how the machine will execute the design. Engineers must carefully program tool paths, cutting speeds, and feed rates to match material specifications and desired outcomes. Attention to detail in programming helps minimize errors and enhances the final prototype's precision.

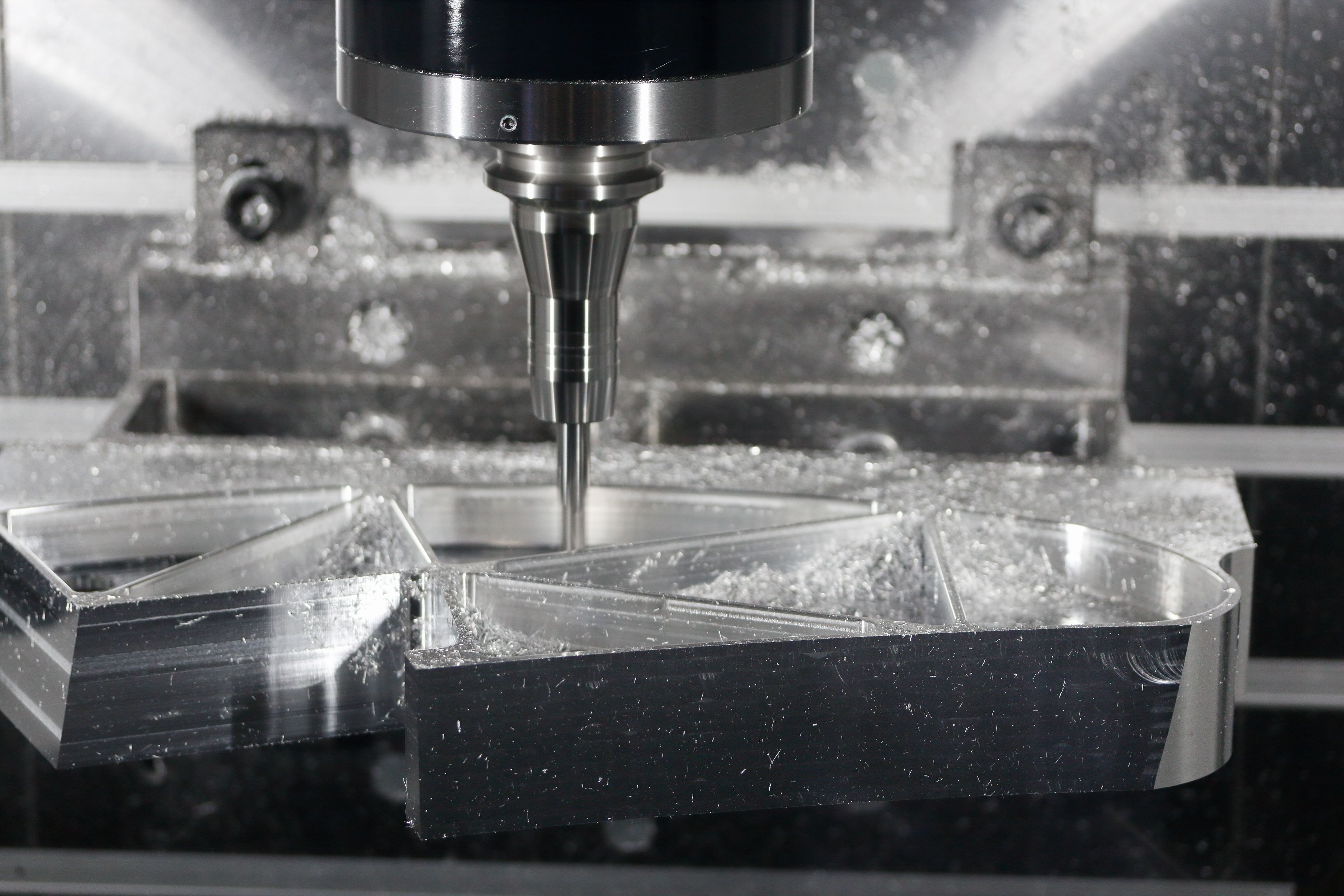

manufacturing process with a CNC milling machine

Quality Control and Inspection

Implementing stringent quality control measures is essential to ensure that prototypes meet desired standards. Using advanced inspection tools like coordinate measuring machines (CMM) can help verify dimensions and tolerances. Consistent inspection throughout the production process helps identify discrepancies early, allowing for adjustments before completing the prototype.

  1. Conduct inspections at multiple stages of production.
  2. Utilize precision measurement tools like CMMs.
  3. Document findings to track quality over time.

Conclusion

Achieving high precision in CNC prototyping involves a combination of selecting the right materials, optimizing designs, ensuring tool quality, programming accurately, and maintaining rigorous quality control. By following these expert tips, manufacturers, like SHD PROTOTYPE that can produce prototypes that not only meet but exceed expectations, paving the way for successful product development.
