Five-Axis CNC Machining: Precision, Versatility, and Efficiency in Modern Manufacturing

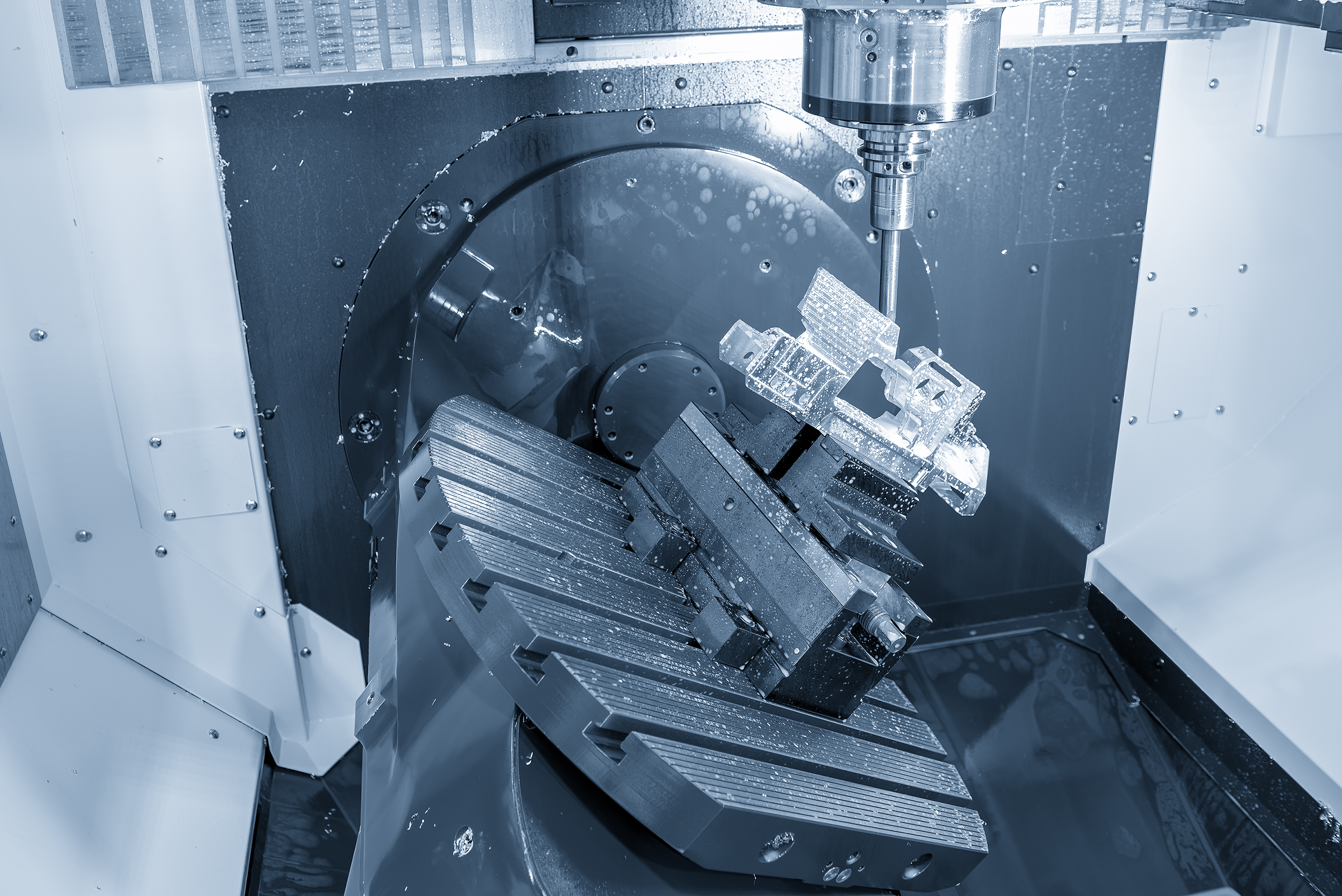

As the most advanced CNC machining technology, the production of parts with complex geometries is completed by a five-axis CNC. Based on the three-axis motion machining of the tool, the two-axis machining of the table tilt or rotation is added to form a five-axis CNC, which improves production efficiency by minimizing the number of machine tools, thereby providing higher machining accuracy and precision. The increase in the number of machine tool axes also gives the five-axis CNC better machining capabilities than similar products. Five-axis machining is suitable for complex parts machining in the aerospace industry, high-precision parts machining in the medical industry, and also provides stability for special parts in the energy industry.

Five-axis CNC machining is a highly advanced manufacturing process that allows for the creation of complex and precise components by moving cutting tools or workpieces along five different axes simultaneously. This method significantly enhances the capabilities of traditional three-axis machining, providing greater flexibility and precision in producing intricate parts.

What is Five-axis CNC Machining?

Five-axis CNC machining involves the movement of the cutting tool or the workpiece along five axes simultaneously: X, Y, Z, A, and B (or C). The additional two axes enable the machining of complex geometries without the need for multiple setups, making it ideal for parts that require intricate detailing and tight tolerances.

Enhanced Precision and Flexibility: Five-axis machining allows for continuous adjustment of the tool's angle relative to the workpiece, ensuring optimal cutting conditions and superior surface finishes.

Reduced Setup Time: With the ability to machine multiple faces of a part in a single setup, five-axis machining reduces the need for repositioning, leading to shorter production cycles.

Ideal for Complex Geometries: This technology is particularly well-suited for producing parts with intricate shapes, such as turbine blades, aerospace components, and medical implants.

Key Features of Five-axis CNC Machining

Multi-axis Movement: The machine can simultaneously move the tool or workpiece along five axes, allowing for the creation of complex shapes with high precision.

Superior Surface Finishes: The ability to maintain optimal cutting angles reduces tool wear and tear, resulting in smoother surfaces and finer details.

Time and Cost Efficiency: By minimizing the need for multiple setups and reducing the overall machining time, five-axis machining offers significant cost savings.

Five-axis CNC machining is highly versatile, finding applications across a wide range of industries, including aerospace, automotive, medical, and energy sectors.

Applications of Five-axis CNC Machining

Aerospace Industry: Used for manufacturing turbine blades, aircraft structural components, and other parts requiring precise contours and tolerances.

Medical Industry: Ideal for creating customized implants, surgical instruments, and other medical devices with complex geometries.

Automotive Industry: Utilized in the production of engine components, transmission parts, and other high-performance automotive parts.

Energy Sector: Applied in the manufacturing of components for turbines, generators, and other energy-related equipment that require precision and durability.

Precautions for 5-axis CNC machining

Although 5-axis CNC machining is widely used in the manufacturing industry, due to its structural characteristics and process requirements, some specific issues need to be paid attention to during operation. The following are several aspects that should be paid special attention to when using 5-axis machining:

1. Not suitable for rough machining and heavy cutting

Compared with traditional 3-axis machine tools, 5-axis machine tools have added two rotating axes, making the machine tool structure more complex and generally less rigid than 3-axis machine tools. Therefore, 5-axis machine tools are not suitable for rough machining and heavy cutting.

When performing rough machining, larger tools are usually used for machining at a greater cutting depth, which will produce greater cutting resistance. If such an operation is performed on a 5-axis machine tool, the vibration of the machine tool may hurt the workpiece. Therefore, it is generally recommended to use 3-axis machine tools for rough machining, and 5-axis machine tools for finishing operations that require high precision.

2. Machining accuracy may not be higher

Although 5-axis machine tools can reduce multiple clamping and improve machining accuracy, their complex structure may also lead to error amplification. For example, since the table of a 5-axis machine tool is rotating, if an error occurs during the production preparation stage, this error may be magnified during the machining process, affecting the final machining accuracy. Therefore, special attention must be paid to the accuracy of production preparation, especially when it comes to workpieces with high coaxiality requirements.

3. Limited workpiece size

Due to the more complex structure of a 5-axis machine tool, its table is usually smaller at the same machine size. This means that 5-axis machines may be limited when processing larger workpieces. Although there are 5-axis machines on the market that can process large workpieces, the number is small and the cost is high.

4. Expensive machining cost

The procurement cost of a 5-axis machine tool is higher than that of a 3-axis machine tool. In addition, to support 5-axis machining, new applications (such as CAM software) are usually introduced or customized to generate compatible NC data. These factors make the cost of 5-axis machining significantly higher than traditional machining methods.

5. The bottom surface of the workpiece needs to be processed in other processes

A 5-axis machine tool cannot process all six sides of a workpiece at one time. When the workpiece is fixed, the bottom surface cannot be machined, so the bottom surface usually needs to be pre-machined in other processes before entering 5-axis machining. In addition, since the way the workpiece is fixed will directly affect the machining accuracy, the fixture and fixing scheme must be carefully designed to ensure the stability and accuracy of the workpiece during 5-axis machining.
