Understanding CNC Machining Tools: Types and Their Applications

CNC machining has provided unparalleled precision and efficiency. Central to this process are CNC machining tools, which play a crucial role in shaping and finishing materials. This blog will delve into the various types of CNC machining tools, their applications, and considerations for selecting the right tools for your projects.

Types of CNC Machining Tools

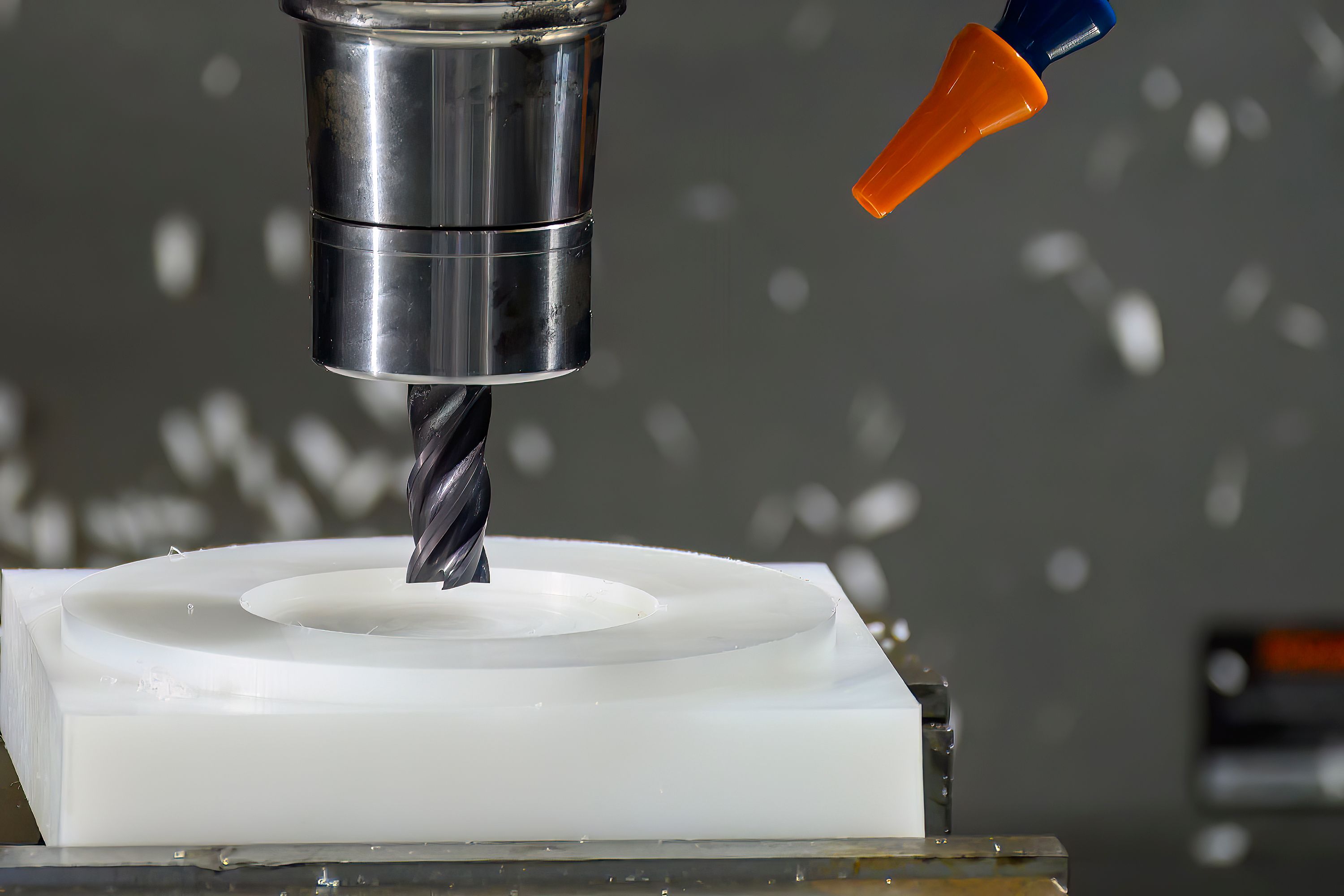

End Mills
End mills can cut in multiple directions, making them ideal for creating slots, contours, and complex shapes. Available in different configurations, such as flat-end mills for vertical surfaces and ball-end mills for curved surfaces, they are essential for roughing and finishing operations.

Drills
Drilling tools are fundamental in CNC machining, designed specifically for creating holes in materials. Common types include twist drills, which are standard for general drilling tasks, and specialized drills like spot drills, which prepare the surface for larger holes. Precision is key in drilling, and choosing the right drill type can significantly impact the quality of the finished product.

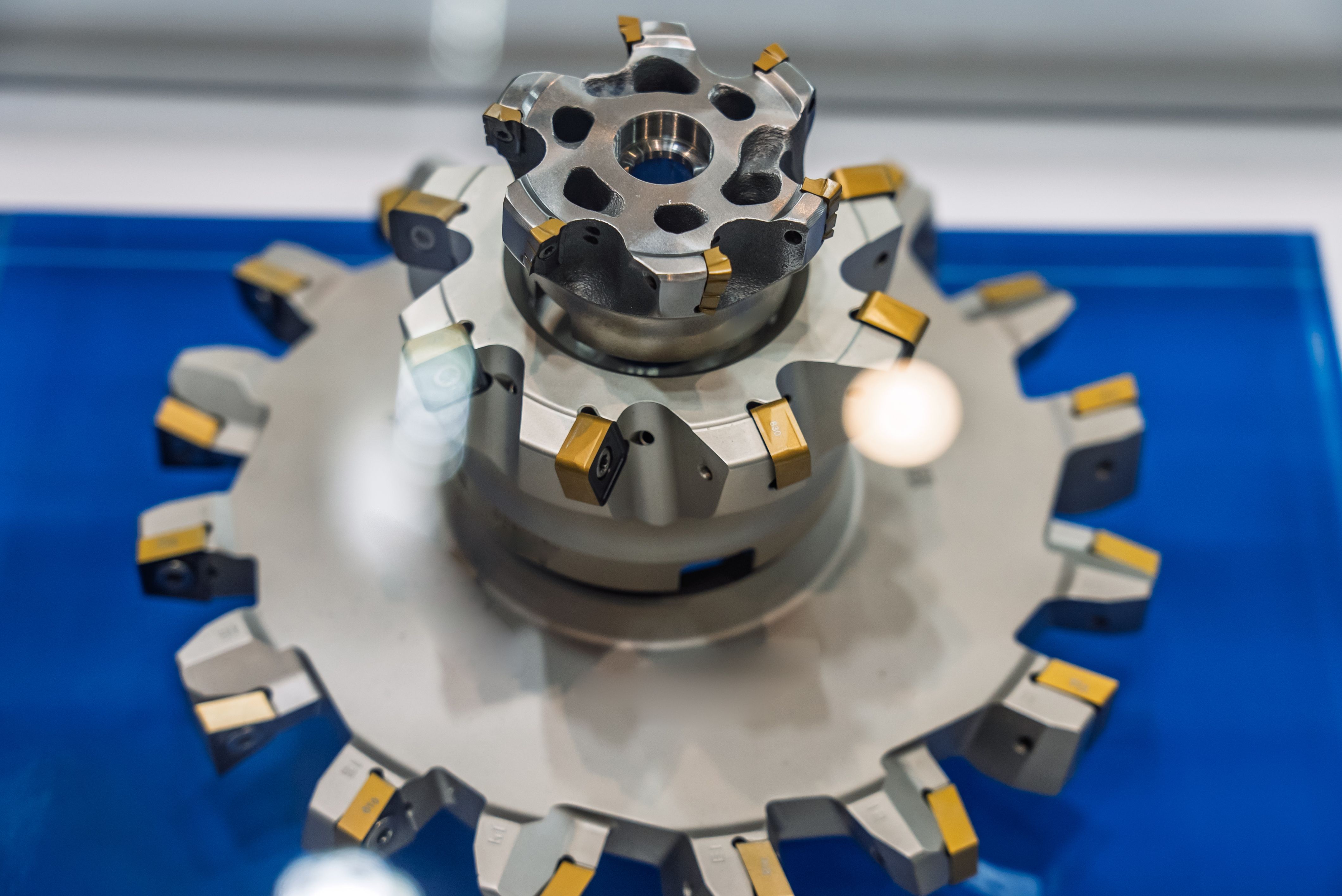

Face Mills
Face mills are used primarily for surface finishing, allowing manufacturers to create flat surfaces and remove large amounts of material efficiently. These tools can also achieve superior surface finishes, making them essential in industries where aesthetics and precision are paramount. They come in various sizes and configurations, tailored to specific machining needs.

Turning Tools
Turning tools are designed for lathes and crucial for creating cylindrical parts. This category includes external turning tools, internal boring bars, and threading tools. Each type serves a unique purpose, enabling manufacturers to produce complex shapes and features with high accuracy.

Specialty Tools
Beyond the common types, there are specialty CNC machining tools designed for specific applications. These include:

-Taps for creating internal threads.
-Reamers for precision hole sizing.
-Grooving tools for making grooves or slots in materials.

Choosing the Right CNC Machining Tools
Selecting the appropriate CNC machining tools is vital for achieving optimal results. Factors to consider include:

-Material of the Workpiece: Different materials require different tools. For instance, harder materials may necessitate carbide tools for better durability.
-Desired Surface Finish: The type of finish required will influence the choice of tools, as some are better suited for roughing while others excel in finishing.
-Production Volume: High-volume production may benefit from tools designed for longevity and efficiency, while low-volume jobs might prioritize flexibility and versatility.
-Machine Compatibility: Ensure that the tools are compatible with the CNC machines being used, as this affects performance and efficiency.

Maintaining CNC Machining Tools

Proper maintenance of CNC machining tools is essential to ensure their longevity and performance. Regular inspections for wear and tear, appropriate storage conditions, and timely replacements are crucial. Additionally, using the correct cutting parameters can significantly extend the life of your tools and enhance the quality of the finished products.

CNC Machining Services at SHD PROTOTYPE

At SHD PROTOTYPE, we specialize in providing top-notch CNC machining services tailored to your specific needs. Our facility is equipped with advanced CNC machining tools and technology, allowing us to handle a wide range of projects—from prototype development to small and medium production runs. Our experienced team is dedicated to delivering high-precision results, ensuring that every project meets the highest quality standards. Whether you need custom parts or specialized machining services, SHD PROTOTYPE is here to help.

Contact us today to learn more about our CNC machining services and how we can assist you in bringing your projects to life with precision and excellence.
